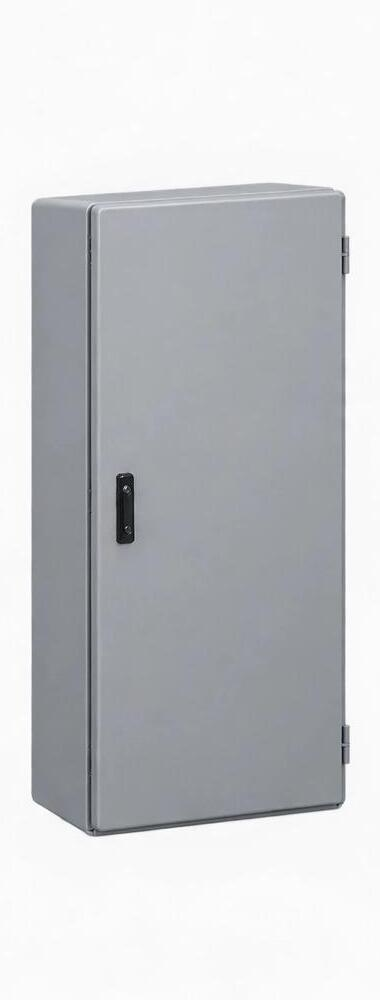

Wall-Mount Junction Box Enclosure
Compact wall-mounted sheet metal enclosure for junction boxes, terminal wiring, and small control assemblies.
Material
Cold Rolled Steel (CRCA) / Aluminum 5052
Tolerance
±0.25mm
Finish
Powder Coated / Mill Finish
Size Range
200 x 150 x 100mm to 600 x 400 x 200mm (custom sizes available)
ISO 9001 Certified Ships to USA & Canada 24hr Quote Response
Product Overview
Compact wall-mount enclosures fabricated from precision-formed sheet steel or aluminum, designed for junction boxes, terminal wiring, and small control assemblies. Available with clear inspection windows, cable glands, and mounting flanges for quick installation.
Technical Specifications
| Material | 1mm–1.5mm CRCA Steel / Aluminum 5052 |
| Protection Rating | IP55 / IP66 |
| Door Type | Hinged with quarter-turn or key lock |
| Window Option | Polycarbonate inspection window |
| Mounting | Wall-mount flange, 4-hole pattern |
Manufacturing Process
Sheet cutting → Press brake forming → Spot/TIG welding → Deburring → Powder coating → Hardware assembly → QC inspection
Applications
Junction and terminal boxes
Small control assemblies
Metering enclosures
Instrumentation housings
Key Benefits
- Lightweight, space-saving footprint
- Optional inspection window
- Corrosion-resistant powder coat finish
- Quick-mount wall flange
Industries Served
ElectricalInstrumentationBuilding AutomationUtilities
Frequently Asked Questions
Are inspection windows available?
Yes, polycarbonate inspection windows can be added to any wall-mount enclosure design.
What is the minimum order quantity?
MOQ is 100 units for standard sizes; custom sizes have a MOQ of 250 units.
Get a Quote for This Product
Certifications
ISO 9001:2015
RoHS Compliant
REACH Compliant
