EnclosuresSteel Enclosures

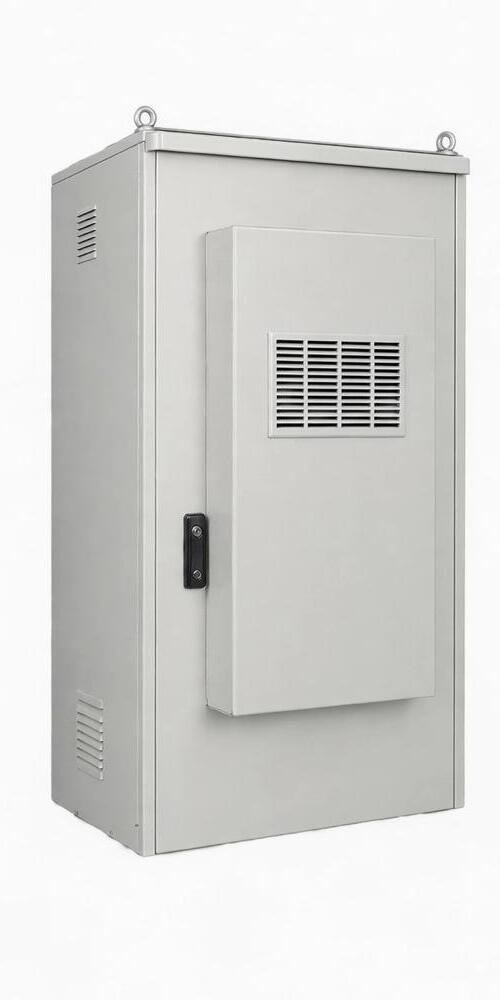

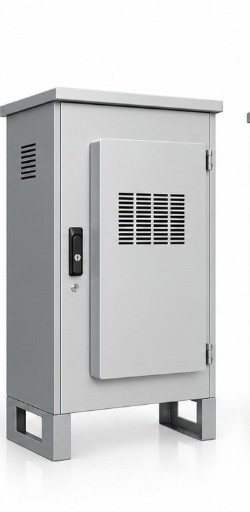

Floor-Standing Electrical Enclosure
Free-standing sheet metal enclosure with hinged door and mounting plate for control panels and switchgear.
Material
Cold Rolled Steel (CRCA) / Stainless Steel 304
Tolerance
±0.3mm
Finish
Powder Coated (RAL 7035 Grey) / Electrogalvanized
Size Range
600 x 600 x 1800mm to 1000 x 800 x 2000mm (custom sizes available)
ISO 9001 Certified Ships to USA & Canada 24hr Quote Response
Product Overview
Our floor-standing electrical enclosures are fabricated from precision laser-cut and bent sheet steel, providing a rugged housing for control panels, switchgear, and power distribution equipment. Each unit includes a lockable hinged door, internal 19" mounting rail, and a weatherproof gasket seal.
Technical Specifications
| Material | 1.5mm–2mm CRCA Steel / SS304 |
| Protection Rating | IP54 / IP65 |
| Door Type | Single or double hinged door with lock |
| Mounting | Internal 19" rail, adjustable |
| Cable Entry | Bottom gland plate, customizable |
Manufacturing Process
Laser cutting → CNC press brake forming → Welding → Surface treatment → Powder coating → Hardware assembly → 100% QC inspection
Applications
Control panel housing
Switchgear enclosures
Power distribution cabinets
Server/network rack housing
Outdoor equipment shelters
Key Benefits
- Rugged all-welded sheet metal construction
- Custom cutouts and mounting layouts
- Powder coat finish for corrosion resistance
- IP54/IP65 sealed door options
Industries Served
ElectricalIndustrial AutomationTelecomRenewable Energy
Frequently Asked Questions
Can enclosure dimensions be customized?
Yes, we manufacture to custom drawings and dimensions with MOQ starting at 50 units.
What protection ratings are available?
Standard IP54 and IP65 rated doors are available; higher ratings can be engineered on request.
Get a Quote for This Product
Certifications
ISO 9001:2015
RoHS Compliant
REACH Compliant
